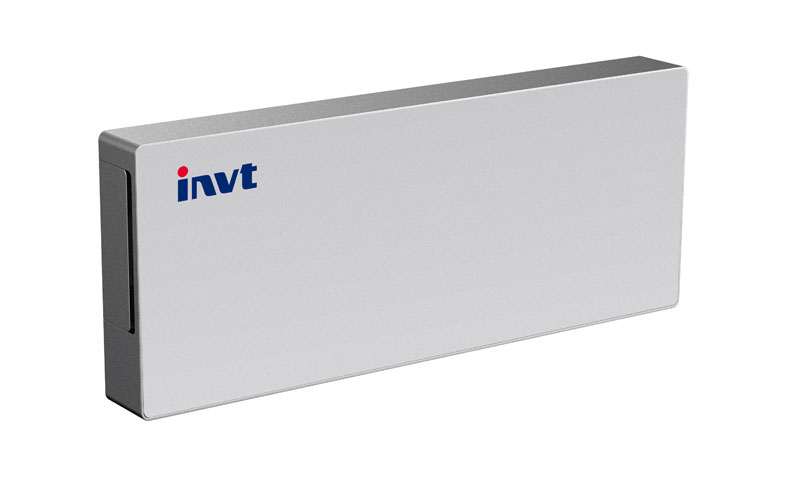

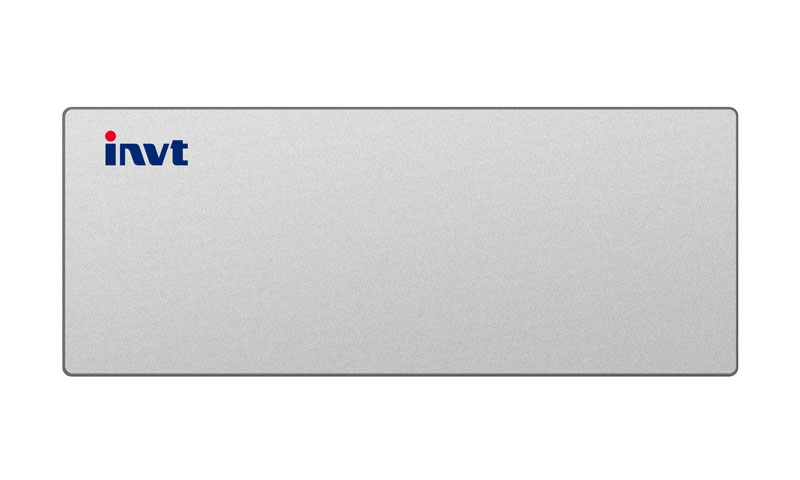

GRP6.14-WLV

Low Voltage Battery

Key Feature

  • BYD automotive grade, A- class LiFePO4 blade battery with superior security features
  • Built-in smart BMS powered-by BYD, keeps your battery health

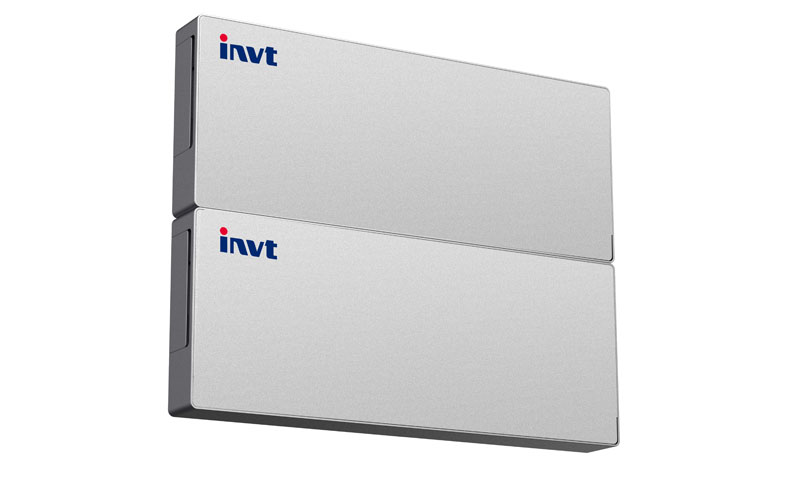

  • Expandable battery design. Up to 6 parallel connections
  • Excellent temperature performance, Temperature of charge @ -20°C ~ +55°C, temperature of discharge @-30°C ~ +60°C


Specification
  GRP6.14-WLV
Battery Parameter　
Battery Cell BYD Blade Lithium-iron Phosphate ( LiFePO4 )
Battery Energy 6144Wh
Nominal Capacity 120Ah
Depth of Discharge 80%
Nominal Voltage 51.2V
Voltage Range 43.2Vdc ~ 57.6Vdc
Nominal Charge / Discharge Current 60A
Max. Charge/Discharge Current 120A
Dimension (W x H x D) 1112 x 443 x 118 mm
Weight 46kg
Installation Wall-mounted
Temperature of Charge -20℃ ~ +55℃
Temperature of Discharge -30℃ ~ +60℃
Protection Degree IP21
Parallel Units Up to 6
Communication Port RS485, CAN
Display LED
Operation Humidity 5% ~ 95%
Max. Operating Altitude 2000m
Design Life >10 years (25℃）
Certification CE, IEC, UN38.3, MSDS
